- ULTIMATE PRECISION: Our ZrN coated bits last longer and resist heat buildup; our CNC router bits have a tougher cutting edge which helps to prevent the build-up of material in the flutes while cutting
- IDEAL FOR CUTTING: Aluminum, Brass, Copper, Acrylic / Plastic, Composites, Epoxy, HDPE, High Pressure Laminates (HPL), PVC, Sign Foam, Solid Surface, Wood

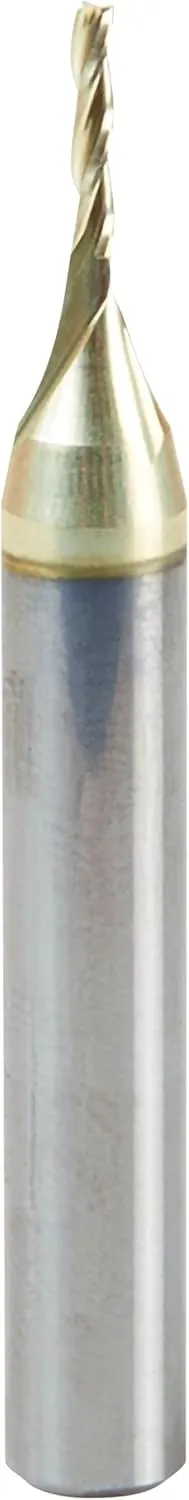

- FLAT BOTTOM ROUTER BIT DIMENSIONS: 46290; 0.10 Degree Angle x 1/16 Diameter x 5/16 x 1/4 Shank x 2 Inch Long x 3 Flute; specially designed for 2D and 3D CNC profiling and carving
- SOLID CARBIDE: Amana Tool solid carbide router bits ensure long-lasting cutting edge performance and tool life; delivering repeatable precision for a variety of cutting projects
- INDUSTRIAL-QUALITY TOOLS: Amana Tool is an industry leader for over 50 years specializing in industrial quality cutting tools for the woodworking, plastics, aluminum, composite, and metal
Specially designed for 2D and 3D CNC profiling and carving in plastic, aluminum & wood with CNC machines. The high-shear Flat bottom tips cut Smooth 2D and 3D contours with reduced stepping while the proprietary ZRN coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction and heat buildup. Some of Amana Tool carving tools, as you can appreciate have a very small diameter therefore any material chip-loads need to reflect that small size. It can however withstand RPM up to 60, 000 RPMs. A directed air-blast to keep chips away along with cooling the tool and work piece are always welcome. Tools are manufactured with high balance that allows them to run up to 60, 000 RPMs. Adjust your chip load and feed rate accordingly, #46290, (D) diameter 1/16, (a°) angle 0.10°, (b) Cutting height 5/16, (D) shank 1/4, overall length (L) 2, type flat bottom, ZRN, flutes 3, 46290 CNC 2D and 3D carving Flat bottom 0.10 deg angle x 1/16 dia x 5/16 x 1/4 shank x 2 inch long x 3 flute solid carbide ZRN coated router bit
